BTF-LIGHTING FCOB WS2811 IC RGB COB LED Strip 16.4FT DC24V 630LED/m Flexible High Density Uniform Chasing Color Light 14IC/m 10mm Width Dream Color LED Ribbon(No Adapter or Controller)
Original price was: $29.99.$24.99Current price is: $24.99.
Price: $29.99 - $24.99
(as of Jan 17, 2025 18:36:34 UTC – Details)
Product Description
BTF-LIGHTING Flip Chip On Board SPI RGB LED Strip
Parameter Table
LED Type FCOB SPI RGB IC Flip Chip On Board LED Strip Input Voltage DC24V LED Quantity 630LED/m, 14IC/m, Group of 45LED addressable LED Strip Width 10mm Waterproof level IP30 Non-waterproof IC type WS2811 IC Operation temperature -4℉~113℉（-20℃~+45℃ ） Storage temperature -4℉~104℉（-20℃~+40℃ ） Ways of working Work with a controller- RF remote ,Bluetooth ,WiFi, Alexa Wave length(nm) Red:620-630nm ; Green:520-530nm ; Blue:460-470nm Total length 32.8FT(10m)/16.4FT (5m) / 9.8FT (3m) / 3.2 FT(1m) NOTES Group of 45LED addressable. 1 pixel=1 IC chip=45LED FPCB board color White Recommend power supply DC24V3A (Power supply or controller is not included)
Double-sided adhesive tapeFree fixed clips
1 Addressable 2 Series Connection 3 Lighting Effects 4 Wide Application 5 Double fixation
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
Low voltageHand touchable
1 WS2811 RGB IC
2 Recommended Controller
3 Easy-to-use
4 180° Beam Angle
5 Safe
Choose the right FCOB product for you-Single Color,CCT,RGB,RGBW
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.4 out of 5 stars
235
4.4 out of 5 stars
192
4.1 out of 5 stars
23
4.1 out of 5 stars
23
4.5 out of 5 stars
505
4.4 out of 5 stars
239
3.9 out of 5 stars
179
Price
$24.99$24.99
$39.99$39.99
$21.99$21.99
$29.99$29.99
$14.99$14.99
$19.99$19.99
$29.99$29.99
Colour
RGB
RGB+3000K/4000K/6000K
3000K/4000K/6000K CRI90+
Tunable 3000K~6000K CRI90+
3000K/4000K/6000K CRI90+
Tunable 3000K~6000K CRI90+
RGB
IC Type
WS2811 IC
WS2814 IC
WS2811 IC
WS2811 IC
No IC
No IC
No IC
LED Density
630LED/m
784LED/m
360 LED/m
576 LED/m
336-416-480-528 LED/m
640 LED/m
DC12V-810LED/m DC24V-840LED/m
LED Width
0.39in(10mm)
0.39in(10mm)
0.39in(10mm)
0.39in(10mm)
0.31in(8mm) or 0.39(10mm)
0.39in(10mm)
0.39in(10mm)
Work With Controller
Bluetooth/WiFi/Alexa
Bluetooth/WiFi/Alexa
Bluetooth/WiFi/Alexa
Bluetooth/WiFi/Alexa
Bluetooth/WiFi/Alexa/Zigbee
Bluetooth/WiFi/Alexa/Zigbee
Bluetooth/WiFi/Alexa/Zigbee
Series Connection
✔
✔
✔
✔
✔
✔
✔
Working Voltage
DC12V/DC24V
DC24V
DC24V
DC24V
DC5V/DC12V/DC24V
DC5V/DC12V/DC24V
DC5V/DC12V/DC24V
CRI
–
Pure White:CRI＞90
CRI＞90
CRI＞90
CRI＞90
CRI＞90
–
Chasing Color
✔
✔
✔
✔
✘
✘
✘
Pin
3pin
3pin
3pin
3pin
2pin
3pin
4pin
Package Dimensions : 8.35 x 7.24 x 0.59 inches; 4.16 ounces
Item model number : 02ee8d3d-e8ba-4736-8e48-5bbec44f777a
Date First Available : May 3, 2023
Manufacturer : BTF-LIGHTING Technology Co., Limited
ASIN : B0C45JVBGP
Country of Origin : China
【Group of LED Addressable】DC24V 16.4FT 630LED/m 14IC/m,one WS2811 IC Chip drives 45 LED.Compatible with K1000C etc programmable controllers. Support SP630E SP611E SP105E SP602E SP608E etc APP controllers,CSY08 SP107E etc music controllers, SP530E etc smart WiFi Voice Controllers.Also support other DIY Controller.
【Ultra Bright and Uniform】Flip Chip On Board LED strip(FCOB).Adopting high brightness LED as the light source to ensure the brightness while maintaining color consistency.Compared with traditional 5050SMD RGB/3528SMD RGB LED strips,FCOB light strips dense light-emitting units create a brighter, softer, more dream color and uniform light, avoiding Black in the middle area.
【Stunning Lighting Effects】Amazing Mixed color producing multi fantasy colors. 3 colors RGB can be mixed into 16 million different colors. Built-in addressable WS2811 IC chip, matching with the correct controller, not only can you adjust various static colors, but also achieve diverse dynamic lighting effects, such as: colorful curtain-up/ flow water/raindrop/jump flash and so on. (Controllers Sold Separately)

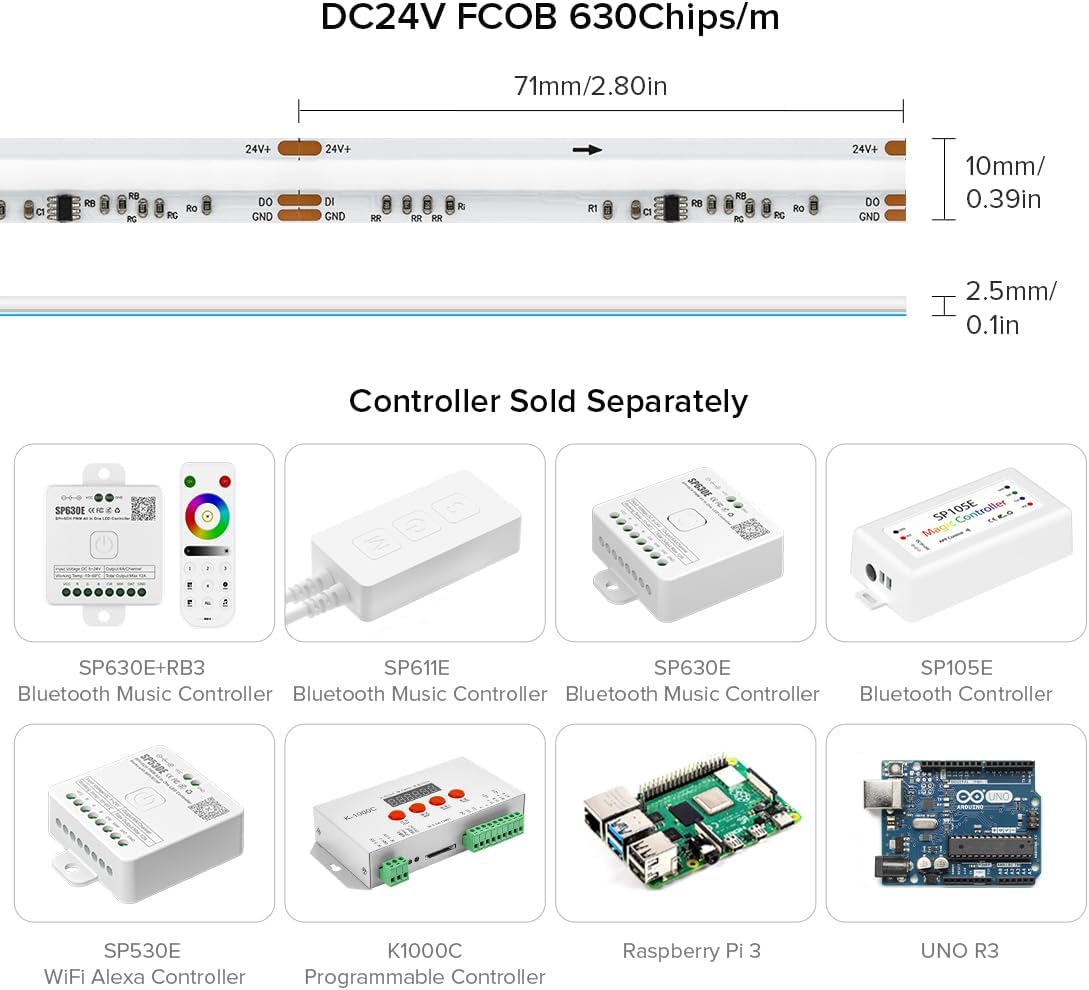

【Cuttable and Linkable】BTF-LIGHTING FCOB LED strip is soft and flexible.The interval between the two Cut Mark measures 2.8in (71mm). 3PIN connector on two ends,one is female the other one is male.It also support end to end connect in series.10mm width.
【Shopping With Confidence】Adopting real double-layer copper PCB board, better electronic conductivity and heat dissipation.More than 65,000 hours lifespan.We also provide 12 months worry-free warranty and 24/7 customer service.
【Wide Application】Our FCOB LED light is perfect for various interior decoration.Such as living room, hallway, bedroom, kitchen, accent lighting, cabinet lighting, stair, mirror, corridor, DIY backlight, DIY lighting, special use and other commercial and residential lighting projects.Come with a strong self adhesive backing.Tips:Before installation, please thoroughly clean and dry the installation surface.
【Packing list】Power supply or controller is not included.1XLED Strip, 1X3PIN Male Connector,3x Fixed Clips.Tips:Please note that accessories recommended by Amazon system in the “Frequently Bought Together” box may not be accurate. Please double check the light specifications to ensure that the items you are buying together are compatible.
Customers say
Customers appreciate the string lights for their bright and vibrant colors. They find them fun to watch and consider it a quality product. However, some customers have reported issues with the lights not working properly or flashing randomly.
AI-generated from the text of customer reviews
7 reviews for BTF-LIGHTING FCOB WS2811 IC RGB COB LED Strip 16.4FT DC24V 630LED/m Flexible High Density Uniform Chasing Color Light 14IC/m 10mm Width Dream Color LED Ribbon(No Adapter or Controller)
Add a review
Related Products
Original price was: $29.99.$24.99Current price is: $24.99.
michael e norins –
Best ICRGB Iâve Found Butâ¦.
Is just thin strip. Requires multiple accessories and a little tricky to add 90* transitions. By far the best aesthetic, brightness, and effects.
Cyntdawg –
Excellent LED
I installed them on my Bicycle and the look good. I get complemented all the time on my night bike rides.For best pattern use the WLED controller.
Amazon Customer –
My first LED project and works! Good customer service
On my first order, I didn’t know what I needed for the project, I ordered per some videos. But the seller contacted me suggesting tips and even saw my plan for suggesting better way to make it better. Before you order would highly suggest:1) Calculate the power needed for the length per the description. Then Order the power supply.2) Wifi controller per each zone and all that can be controlled using a remote. Remote is a little bit flimsy and also app through wifi. Using bluetooth inside the app works great.3) Connectors – L shape connectors (90 degree turns), extension wires (when your measurement is between 2 cut points) and clip connectors (join two led strips) are usually what you need4) Making a connection is tricky but once hooked it stays. Like you gotta use the flat pliers with a nice and easy snap! I have failed sometimes bending (toomuch side force) or loose (you gotta push the wires isnide as you can)5) Stickiness is something I am still trying to question like it looses it eventually I think, I guess we have to buy an extra thing double sided tape in the future to strengthenI gice it 5 stars as the customer service was excellent and light turned out to be great. There is a learning curve to do this project. Have patience!
kevin –
Awesome!!
Love this product. Lights are amazing. I definitely will be buying more of these. Hopefully to install for my customers.
MadPB –
12v is bright enough for me, uses nearly 4.5A on white
I wanted to upgrade my old LED strip with this to avoid the points-of-light effect, and they really do look good. I got the higher density 144 led/meter (720 total for the 5M strip) and I couldn’t really find out what the power draw would be. Too many different answers here, so here’s what I found.Hooked to my bench power supply set to constant 12V, on any of the solid RGB colors it draws about 1.4A, and when it’s on white (mixed white, so all RGB would be on at the same time) as expected it draws about 4.3-4.4A total.Right now I have it doing a RGB chasing, with a few other colors thrown in (cyan, white, yellow) and the draw is 2.5-2.6A.Overall, if you’re looking for a power supply and need to know how many amps you’ll need, it could work with 5A but you’ll be happier if you get one that’s overrated to avoid dropping the voltage too low when it’s all white. Go with 6+ at least, but might as well get a 10A supply and call it good.I haven’t installed it yet but it looks like the adhesive strip should work as well as my last one, which stuck pretty well.I paired mine up with an SP630E controller and so far that’s working well too with these lights. No complaints.
R. Stanley –
Not very good
Couldn’t get it to work and tried everything but it failed. BTF usually has good strips but this one failed. Returned and ordered another COB strip from them.
Russ –
Everything has been worked out and I really like the strip.
6/25 update. After dozens of emails, “Billy” at BTF came through for me. He asked the correct questions and agreed that the strips I received were bad. He put in an order for replacement, (since they were out of stock) and I received a new strip that works as expected.The strip is as good as I had hoped. I love the “neon” look while also being addressable. They really look fantastic. I would have given 5 stars but I had to buy a new controller for verification that old strip was actually bad, and not just the DIY controller I was using. It was a bigger hassle than I wanted but the customer support was pretty good. (At least Billy was helpful). I seriously would have given 5 stars if not for the issues while troubleshooting and having to fork out money for another controller. I’ve purchased a lot of BTF products and this is the first time I’ve had issues. All’s well that ends well.—————————————————————————6/14 update. I tried working with the seller for a resolution, but there’s a lot lost in translation. They seem to be trying and have offered a refund, but this is a review of “free” product, so that’s not really an option. I actually bought a BTF-controller to see if it made any difference, but it didn’t. (I REALLY wanted these to work). I’ll see if they send me another strip that works and will update then. Fingers crossed.——————————————————————————I have been trying to get these to work with my ESP8266 controllers without success. I run a bunch of LEDs with these same controllers at Christmas and they work really well with the 5v WS2811 IC. I assumed this strip would be the same. I provided 24v to the strip and used a converter to take the 24v down to 5v for power to the ESP8266 controller. The D4 pin of the ESP provides the data to the LED strip. I share the ground to the controller and strip and have tried a few different online blogs, but can’t seem to get this strip to work. I got a response from the seller, but they asked me to provide video directly to their email instead of corresponding through Amazon. Although I buy a lot of BTF lighting stuff, that just seems sketchy. I responded through Amazon and will see what support they offer. Hopefully it’s a simple fix and I will update this review.
